Ricoh GXR Camera System

Ricoh GXR Camera System

Ricoh announced its new GXR interchangeable unit camera system featuring the world’s smallest and lightest digital camera with the ability to change lenses. Ricoh’s new system is an innovation in the camera industry. Instead of just changing the lens, Ricoh introduces the “camera unit”, which integrates lens, image sensor, and image processing engine, meaning the body itself does not contain an image sensor.

The GXR system uses slide-in mount system to attach camera units to the body. The body (aka externals) is built using die cast magnesium and its surface is covered with a corrosion-resistant “pear-skin” coating. There is also an image processing engine in the body. It gets a 3-inch LCD display.

Ricoh brings two camera units, the GR LENS A12 50 mm F2.5 MACRO and the RICOH LENS S10 24-72 mm F2.5-4.4 VC. The former uses a 23.6 mmx15.7 mm (APS-C size) CMOS sensor with 12.3 Megapixel and its is obviously a lens for macro shooting, with a shooting distances from infinity to the 1/2x maximum magnification macro range. The RICOH LENS camera unit, instead, gets a 10 Megapixel 1/1.7-inch CCD sensor, Smooth Imaging Engine IV, 24mm to 72mm 3x wide-angle zoom and camera shake correction function.

Optional accessories include LC-2 lens cover, VF-2 electronic viewfinder, and GF-1 external flash.

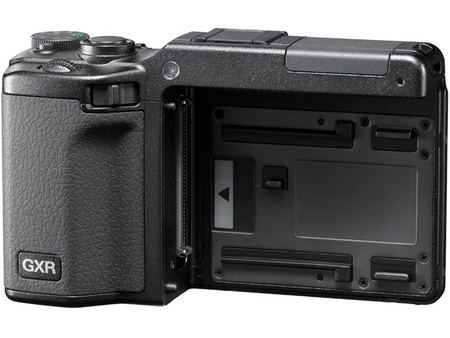

Ricoh GXR Camera body without camera unit

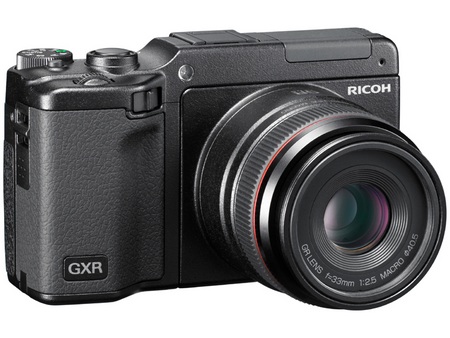

Ricoh GXR with GR LENS A12

Ricoh GXR with GR LENS A12

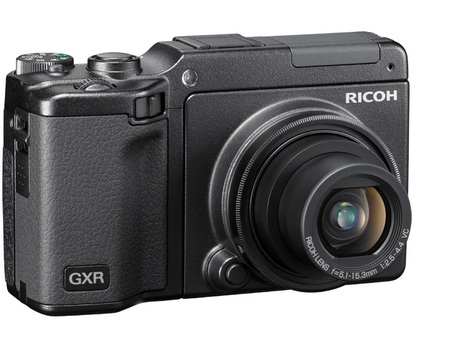

Ricoh GXR with RICOH LENS S10

Ricoh GXR with RICOH LENS S10

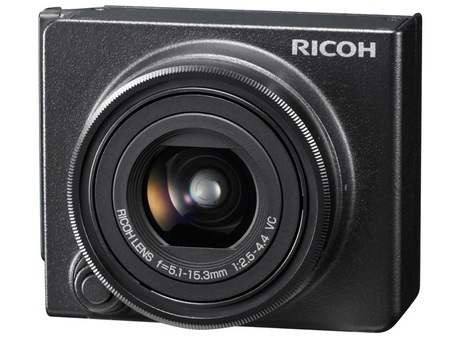

Ricoh GXR RICOH LENS S10 Camera Unit

Ricoh GXR RICOH LENS S10 Camera Unit

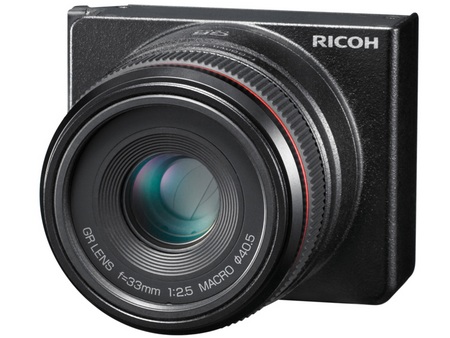

Ricoh GXR GR LENS A12 Camera Unit

Ricoh GXR GR LENS A12 Camera Unit

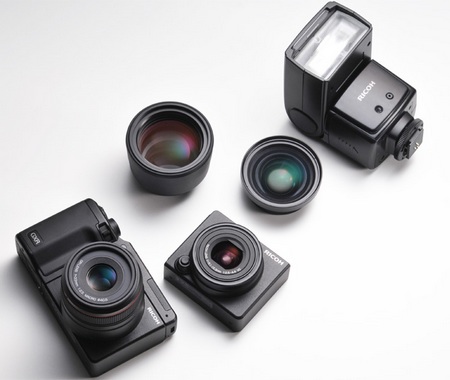

Ricoh GXR Camera System camera unit external flash

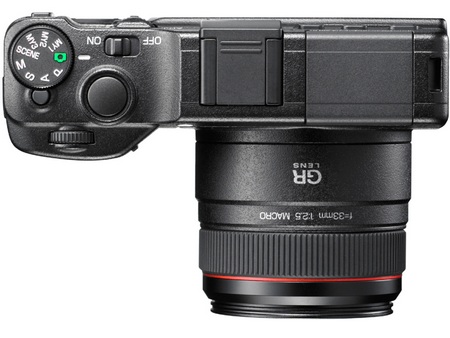

Ricoh GXR Camera body top

Ricoh GXR Camera body back

Ricoh GXR with VF-2 electronic viewfinder

Ricoh GXR with RICOH LENS S10 LC-2 lens cover

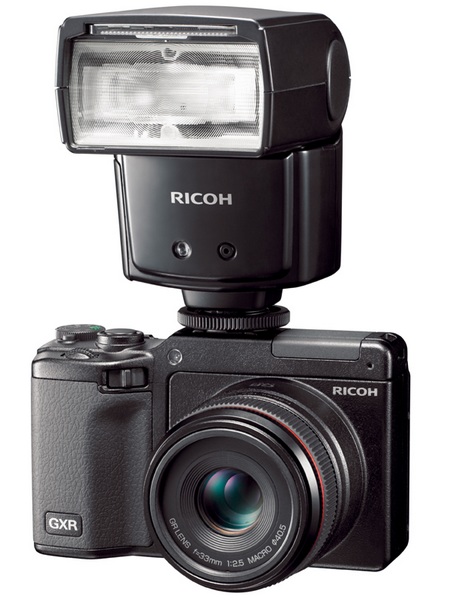

Ricoh GXR with GF-1 External Flash

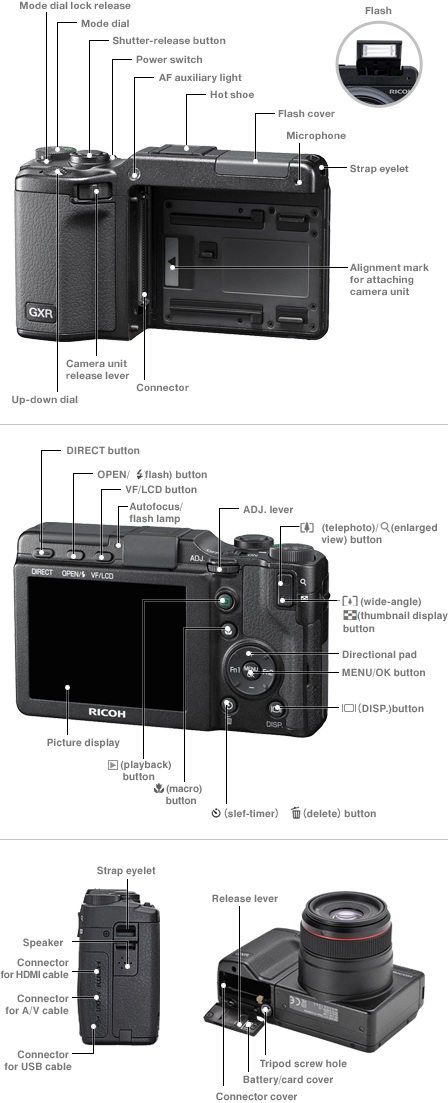

Ricoh GXR Camera System Externals and part name
